BATTERY MAGNETIC LIFTERS 531.73-EPB950SF

For safe lifting of parts



 Download product sheet

SKU 531.73-EPB950SF Categories ,

Description

Simple and effective battery magnetic lifters EPB950SF

SAV FRANCE battery magnetic lifters EPB950SF allow the lifting and handling of flat or round parts. These high quality magnetic lifters comply with all current European standards. These magnetic lifters are available in several versions. Lifting magnets are available in manual, electric or pneumatic versions.

With more than 25 years of experience in battery magnetic lifters, SAV FRANCE puts its know-how at your service to recommend the magnetic solution adapted to your needs whatever your sector of activity:
Metalwork
Steel industry
Steel distribution and construction
Port activities

SAV FRANCE magnetic lifters EPB950SF meet all of your lifting and handling needs for both workshop and outdoor use.

You want to handle sheets, beams, profiles, rounds, coils, bars, slabs (up to 600°C) individually or in packages, we have the solution. Fast, safe and economical, magnetic lifters allow you to lift and move a steel part from a few kilograms to several tons whatever its shape for loading/unloading machines or trucks.
By getting as close as possible to your needs, we will recommend the solution necessary for the smooth running of your process, with a rapid return on investment.

Our product range involves different magnetic products, both standard and specific:
Electromagnetic or electro-permanent lifting magnets
Battery lifting magnets
Permanent magnet lifting magnets with pneumatic, electric, hydraulic or manual actuation
Our skills do not stop at magnetic lifting systems but at everything around the overhead crane:

Fixed or telescopic lifter, rotating or not
Backup battery
Diesel generator
Control and steering unit
Winder
Radio control
Chains, hooks, rings, etc.
Installation and start-up

Use :
For lifting and transporting flat and round pieces
Autonomous system for individual charge

Features :

  • Electropermanent system, work in complete security
  • Automatic control or by push buttons on the front panel (to be selected on the magnet)
  • Magnet and battery status indicator LEDs
  • Suspended load demagnetization prohibition sensor
  • Rechargeable Lithium batteries and charger
    (more than 1000 cycles by charge around 2h on mains)
  • Safety factor 3:1
  • Mini thickness 4mm
  • 3 adjustable level of force for unstacking parts
  • Type 531.73-EPB950SF has a built-in sensor. It measures the magnetic force, compares it to the weight of the part and indicates on the screen whether the part can be transported. Parameters such as surface finish, material thickness and material are taken into account

Applications:
Loading and unloading machine tools
Lifting and handling parts in the workshop

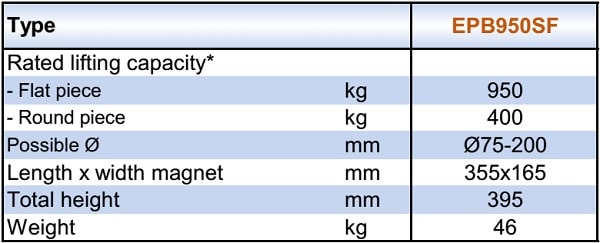

*Maximum weight for S235JR steel parts with smooth contact surfaces of sufficient size and thickness. Lifting capacity varies depending on the type of material, the thickness of the part, the size and quality of the surface in contact

Order Example:
Battery magnetic lifters   SAV 531.73 – EPB950SF
