With lubricated paddles


 Download product sheet

SKU 249.72-LEV Categories ,


Robust lubricated vacuum pump for universal use

First of all, the lubricated vacuum pump SAV FRANCE  allows you to meet all of your vacuum clamping needs.
And for this, with more than 25 years of experience in vacuum clamping solutions, SAV FRANCE puts its know-how at your service to recommend the vacuum solution adapted to your needs whatever your sector of activity:
Steel industry
Steel distribution and construction

Consequently, the lubricated vacuum pump SAV FRANCE can be used on almost all machining machines such as:
Machining center
Milling machine
Surface grinding machine and cylindrical grinding machine
Vertical and horizontal lathe

Consequently, these high quality Professional lubricated vacuum pump comply with all current European standards.
In conclusion, you want to clamp sheets, plates, molds, rails, profiles, rounds, bars, specific parts,  we have the solution. Even faster, safer and more economical, vacuum plates allow a part weighing from a few kilograms to several tonnes to be clamped in the same way in just a few seconds.
By getting as close as possible to your needs, we will certainly recommend the solution necessary for the smooth running of your process, with a rapid return on investment.

Do not hesitate to contact a SAV FRANCE specialist to advise you.

Use :

Vacuum pumps are used to keep parts under vacuum during various operations, including machining, packaging, etc. Its robust design allows it to be used 24 hours a day in industrial applications. The pump has an oil return system, with float valve from the discharge filter housing to the inlet flange, to ensure that the pump can operate optimally in all vacuum levels. Due to its reliability, the pump is often used in applications such as:

  • Vacuum packaging
  • Plastic industry
  • Wood industry
  • Food technology
  • Pneumatic transport

Principle of operation:
Lubricated vacuum pump works according to the rotating vane principle. Rotor is positioned eccentrically within the pump cylinder and has machined slots for the sliding vanes. The centrifugal force of rotation pushes the vanes out of these slots toward the cylinder wall. Gas enters the vacuum pump inlet then passes through a built-in anti-suction valve, which prevents the pump from rotating backwards and into the cylinder. The gas is compressed and pushed through the exhaust. Oil is supplied steadily to the cylinder from the oil pan to provide sealing and lubrication.

Features :

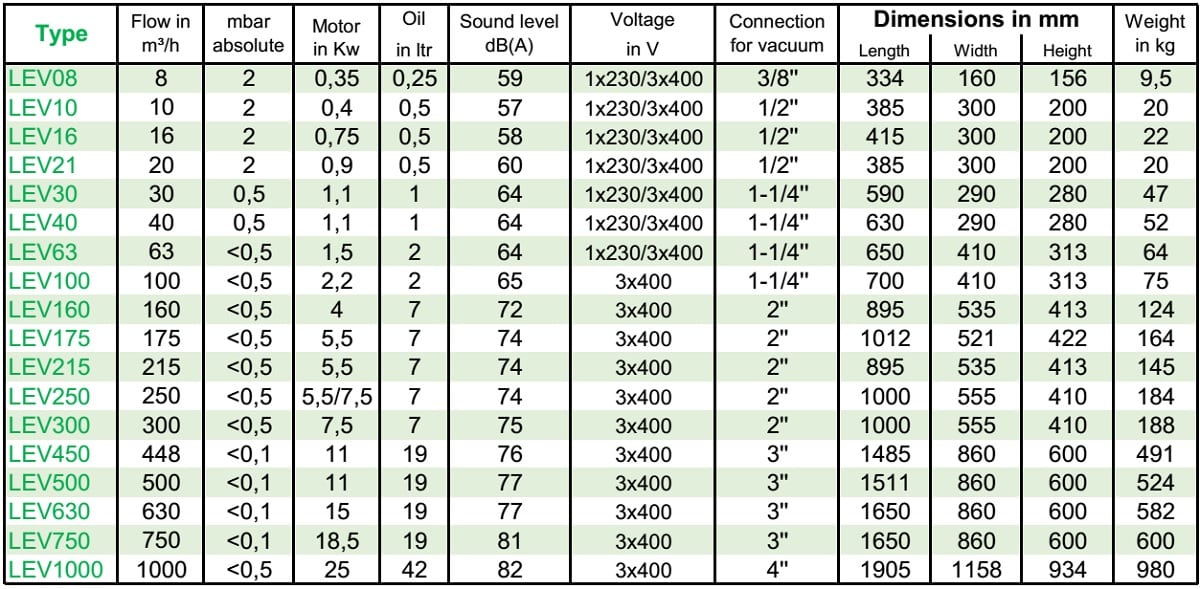

The LEV series pumps are single-stage, air-cooled, direct-drive (no belts) oil recirculating pumps. They are compact, reliable and easy to maintain and use. With the integrated exhaust filtration unit, the exhaust air is 99.9% oil-free. Good tolerance to water vapor.

Filter, vacuum gauge, hose, fitting, valve and distributor
Vacuum tank with manual/automatic liquid separator
Security system and mounting base

Order Example:
Lubricated vacuum pump SAV 249.72-LEV30-400
