ELECTROPERMANENT MAGNETIC MODULE 531.73-NEOEPSG

Magnetization/Demagnetization by electrical impulse



 Download product sheet

SKU 531.73-NEOEPSG Categories ,

Description

Simple and effective electropermanent magnetic module

SAV FRANCE electropermanent magnetic module allow the lifting and handling of flat or round parts. These high quality magnetic lifters comply with all current European standards. These magnetic lifters are available in several versions. Lifting magnets are available in manual, electric or pneumatic versions.

With more than 25 years of experience in lifting magnets, SAV FRANCE puts its know-how at your service to recommend the magnetic solution adapted to your needs whatever your sector of activity:
Metalwork
Steel industry
Steel distribution and construction
Port activities

SAV FRANCE electropermanent magnetic module meet all of your lifting and handling needs for both workshop and outdoor use.

You want to handle sheets, beams, profiles, rounds, coils, bars, slabs (up to 600°C) individually or in packages, we have the solution. Fast, safe and economical, magnetic lifters allow you to lift and move a steel part from a few kilograms to several tons whatever its shape for loading/unloading machines or trucks.
By getting as close as possible to your needs, we will recommend the solution necessary for the smooth running of your process, with a rapid return on investment.

Our product range involves different magnetic products, both standard and specific:
Electromagnetic or electro-permanent lifting magnets
Battery lifting magnets
Permanent magnet lifting magnets with pneumatic, electric, hydraulic or manual actuation
Our skills do not stop at magnetic lifting systems but at everything around the overhead crane:

Fixed or telescopic lifter, rotating or not
Backup battery
Diesel generator
Control and steering unit
Winder
Radio control
Chains, hooks, rings, etc.
Installation and start-up

Use :
For lifting and transporting loads up to 1000kg
Manual activation for individual charging

Features :

– Permanent magnetic system, electrically activated
– No loss of force even in case of power failure
High level of security thanks to Neodymium magnets with safety factor x3
High capacity of lifting even in case of air gap
– Magnetic face with V for round and flat pieces

– Fixing to be defined (tapped holes as standard)
– Quick magnetization and demagnetization of magnet
– Separate control unit in 230Vac or 400Vac
– User manual and individual test certificate
– Wired remote control or radio control option

Applications:
Loading and unloading machine tools
Lifting and handling of flat or cylindrical parts in the workshop
Lifting and handling of plates, blocks, bars, tubes and profiles

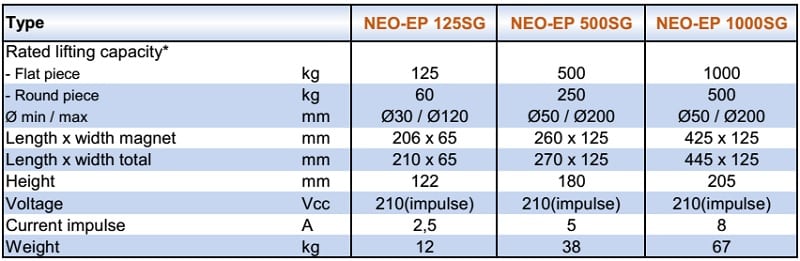

*Maximum weight for S235JR steel parts with smooth contact surfaces of sufficient size and thickness. Lifting capacity varies depending on the type of material, the thickness of the part, the size and quality of the surface in contact

Order Example:
Electropermanent Magnetic module  SAV 531.01 – NEO-EP 500SG
