BATTERY MAGNETIC LIFTERS 531.73-EPB950P

Description

Simple and effective battery magnetic lifters EPB950P

SAV FRANCE battery magnetic lifters EPB950P allow the lifting of profiles. These high quality magnetic lifters comply with all current European standards. These magnetic lifters are available in several versions. Lifting magnets are available in manual, electric or pneumatic versions.

With more than 25 years of experience in battery magnetic lifters, SAV FRANCE puts its know-how at your service. We recommend the magnetic solution adapted to your needs :
Metalwork
Steel industry
Steel distribution and construction
Port activities

SAV FRANCE magnetic lifters EPB950P meet all of your lifting and handling needs for both workshop and outdoor use.

You want to handle sheets, beams, profiles, rounds, coils, bars, slabs (up to 600°C) individually or in packages, we have the solution. Fast, safe and economical, magnetic lifters allow you to lift and move a steel part from a few kilograms to several tons whatever its shape for loading/unloading machines or trucks.
By getting as close as possible to your needs, we will recommend the solution necessary for the smooth running of your process, with a rapid return on investment.

Our product range involves different magnetic products, both standard and specific:
Electromagnetic or electro-permanent lifting magnets
Battery lifting magnets
Permanent magnet lifting magnets with pneumatic, electric, hydraulic or manual actuation
Our skills do not stop at magnetic lifting systems but at everything around the overhead cr

Fixed or telescopic lifter, rotating or not
Backup battery
Diesel generator
Control and steering unit
Winder
Radio control
/>Chains, hooks, rings, etc.
Installation and start-up

Use :
For lifting and transporting U and H profiles
Autonomous system for individual charge
With its narrow, deeply recessed pole shoes, it is ideal for profiles with thicknesses from 4 mm.The integrated automatic mode enables a contactless switching process. When the magnet is positioned and the crane eye is then released, the system switches on or off automatically. This not only increases process reliability, but also saves valuable time in daily use.

Features :

• Electropermanent system, work in complete security
• Automatic control or by push buttons on the front panel (to be selected on the magnet)
• Magnet and battery status indicator LEDs
• Suspended load demagnetization prohibition sensor
• Rechargeable Lithium batteries and charger
  (more than 1000 cycles by charge around 3h on mains)
• Safety factor 3:1
• Mini thickness 4mm
• 3 adjustable level of force for unstacking parts

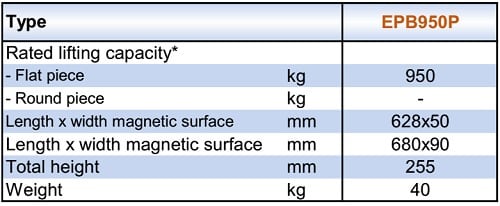

*Maximum weight for S235JR steel parts with smooth contact surfaces of sufficient size and thickness. Lifting capacity varies depending on the type of material, the thickness of the part, the size and quality of the surface in contact

Order Example:
Battery magnetic lifters   SAV 531.73 – EPB950P
